Product Overview

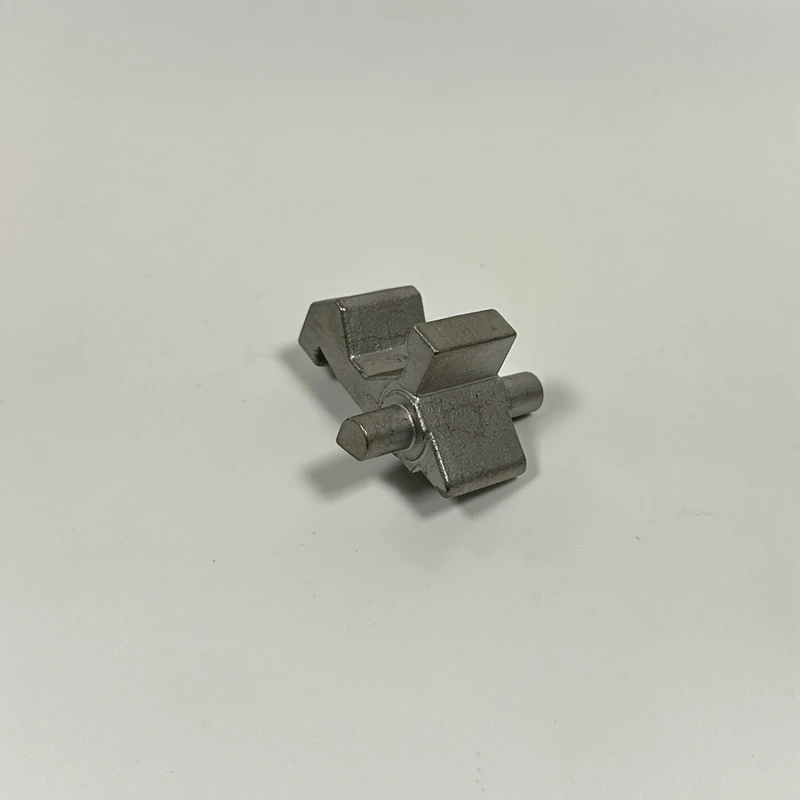

This component is a high-strength precision connector designed for clamping seals to valve housings. Manufactured through High Precision Investment Casting using 17-4PH stainless steel (AMS 5355 standard), it delivers excellent mechanical strength and corrosion resistance, ensuring reliable sealing performance even under high-pressure or corrosive working environments.
Material and Manufacturing
The part is made from 17-4CRES (17-4PH) stainless steel, a martensitic precipitation-hardening alloy known for its superior tensile strength and hardness after heat treatment. The manufacturing process adopts High Precision Investment Casting technology to achieve fine dimensional control and smooth surface finish. The casting complies fully with ES1-3 requirements, while internal radii are precisely controlled at R0.75 ±0.3 mm, with a maximum not exceeding R0.75 mm, effectively reducing internal stress and improving fatigue resistance.
Dimensional Accuracy and Structure
The component features a compact and symmetrical structure, with main dimensions of width 1.63 inches, length 1.8 inches, and a symmetry tolerance of 0.01. Produced by High Precision Investment Casting, its accurate geometry and consistent internal quality ensure stable alignment and dependable mechanical connection when assembled with valve housings or sealing elements.
Applications
This high-strength connector is widely applied in industrial valve systems, fluid control assemblies, and sealing mechanisms where durability and leak prevention are critical. The use of High Precision Investment Casting provides both structural integrity and long service life, making it an excellent solution for precision-engineered components used in demanding environments.
